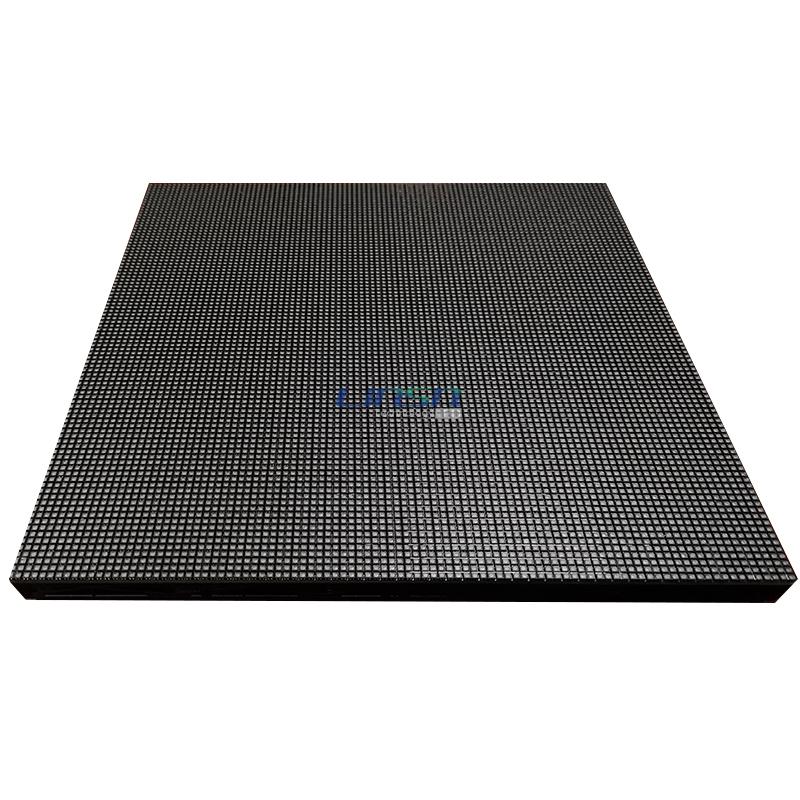

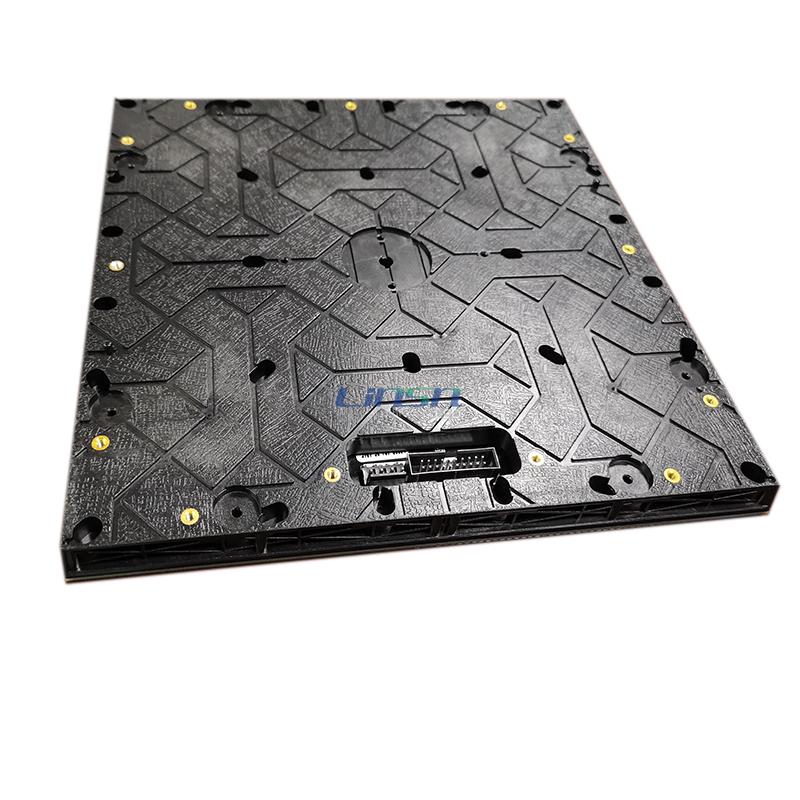

P2.604mm Indoor LED Module 250mmx250mm
- Pixel Pitch: 2.604mm
- Module Size: 250*250mm
- Module Resolution: 96*96
- In Stock
- CE,RoHS,FCC Approved
- 2 Years Warranty
Deskripsi
P2.604mm Indoor led display module 250mmx250mm With Hub75 Interface and 96*96 Dots, High Resolution Best Contrast indoor LED Screen Panel with 2 years warranty.
Remark:

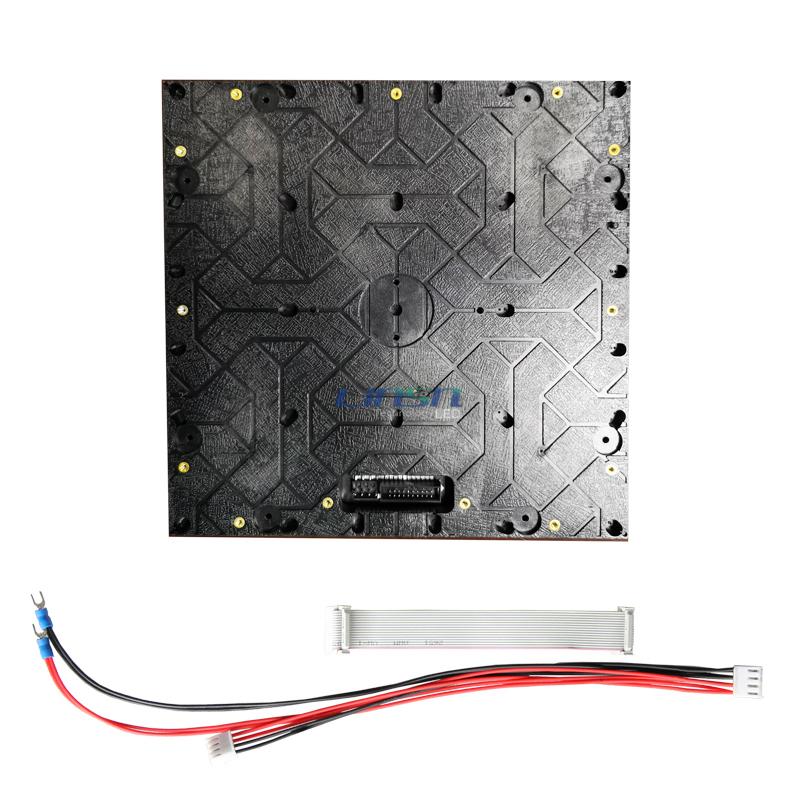

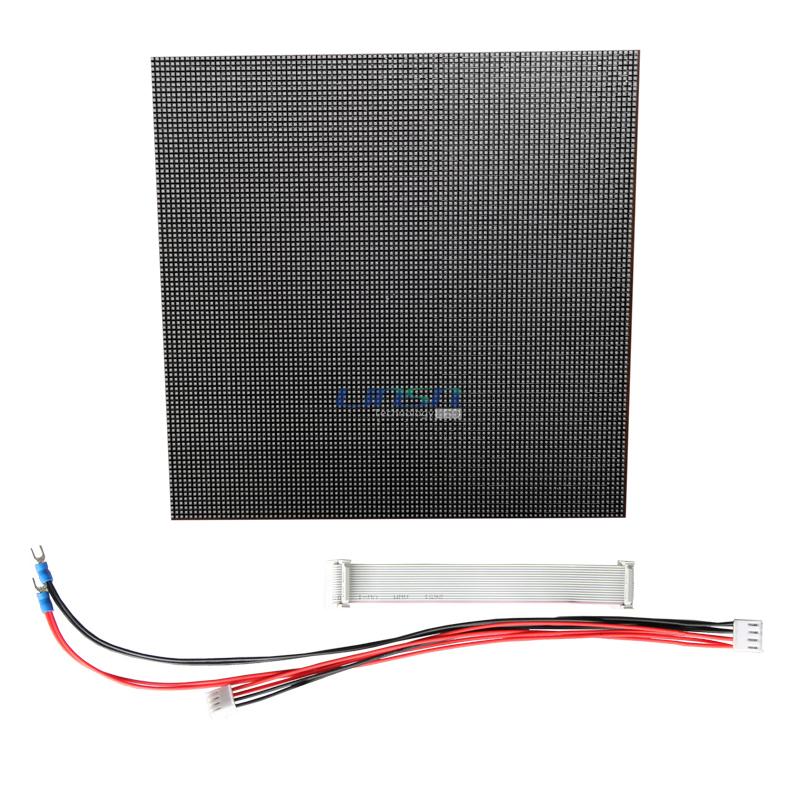

1. LED Module Including the Data & Power Cables.
2. Epistar LEDs, 2 Years Warranty, Ship in 24 hours,Free Online Support.
3. LED Module Can Work With Linsn,Novastar,Colorlight,Xixun LED Conrol Card Etc.
P2.604mm Indoor LED Display Module Parameters:
| Model | LINSN-P2.604-I-96X96 | |||||||
| 1.LED | ||||||||
|---|---|---|---|---|---|---|---|---|
 |
||||||||
| Color | Package | Intensity | View Angle | Wavelength | Test Cond. | |||
| Red | SMD 1515 | 150mcd | 140/140 | 620nm | 25℃,20mA | |||
| Green | SMD 1515 | 400mcd | 140/140 | 520nm | 25℃,20mA | |||
| Blue | SMD 1515 | 100mcd | 140/140 | 470nm | 25℃,20mA | |||
| Resolution | 96(H)×96(V) | |||||||
| Pitch | 2.604mm | |||||||
| LED Arrangement | SMD1515 | |||||||
| Driver Mode | Dynamic 1/32 Duty constant current | |||||||
| Size | 250mm×250mm | |||||||
| Mask | Pure Black mask-high contrast screen | |||||||
| 2.Electricity Parameter | ||||||||
| Optical Ratings | ||||||||
| Brightness | 800-1000 (Nits) | |||||||
| View Angle | 140 degree ( horizontal) 140degree(vertical) | |||||||
| View Distance | 2m-20m | |||||||
| Gray Scale | 8bits input, correction with 16bits | |||||||
| Display Color | 16.7M | |||||||
| Brightness Adjustment | 100 levels | |||||||
| Power Supply | ||||||||
| Operation Power | AC100-240V 50-60HZ Switch-able | |||||||
| Maxim Power Consumption | 850 W/m2 | |||||||
| Average Power Consumption | 380 W/m2 | |||||||
| Control System | ||||||||
| Correction Scale Level | 16bits | |||||||
| Frame Update Frequency | 60Hz | |||||||
| Screen Refresh Frequency | 480-960Hz | |||||||
| Gamma Correction | -5.0—5.0 | |||||||
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI | |||||||
| Control Distance | Ethernet cable 100m, optical fiber 5km | |||||||
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 | |||||||
| Color Temperature | 5000-9300 adjustable | |||||||
| Brightness Correction | dot by dot, module by module, cabinet by cabinet | |||||||
| Reliability | ||||||||
| Operating Temp. | -20-60 Celsius degree | |||||||
| Operating Humidity | 10-95% RH | |||||||
| Operating Life | 100,000 hours | |||||||
| MTBF | 5000 hours | |||||||
| Continuous Working Time | ≥48 hours | |||||||
| Protection Level | IP54 | |||||||
| Out of Control Pixel Rate | 0.01% | |||||||
LED Display Module Aging & Testing
The LED aging test is based on the product’s failure rate curve, which is the characteristics of the bathtub curve, and the countermeasures are adopted to improve the reliability of the product.The indoor led module aging method includes constant current aging and constant pressure aging. A constant current source is that the current is constant at any time. The frequency is not constant. That’s communication or pulsating current. The communication or pulsating current source can be described as the effective value stable, but this power supply cannot be called “constant current source”.Constant current aging is the most consistent feature of LED current operation and is the most scientific method for the aging of LED displays. Over current impact aging and manufacturers the latest clothing design school chooses an aging technique, after using the frequency adjustable, current adjustable constant current source for such aging, in order to judging the quality of the outdoor led module in a short time and can pick out the dangerous LEDs make sure the led display module working well after installation.
The aging of LED display is divided into white balance aging (2×24 hours) and video aging (24 hours).totally 72 hours before packing.
Aging test process of led display screen:
- Check the led display module to install all correct.
- Check whether there is a short circuit or not.
- Check whether the module is flat and neat.
- Check whether the appearance is intact or not.
- Use the online led control system to light up.
Make sure the testing time is continuously light for more than 72 hours
After the aging test, please check the quality control group for parameters.Test content: white balance, red, green, blue,gray gradient,video effect,text effect.after 72 hours aging test,the problem should be reported to the manager of the engineering department in a timely manner.replace or repair the broken leds. making sure all parts will be working well stably before packing.
